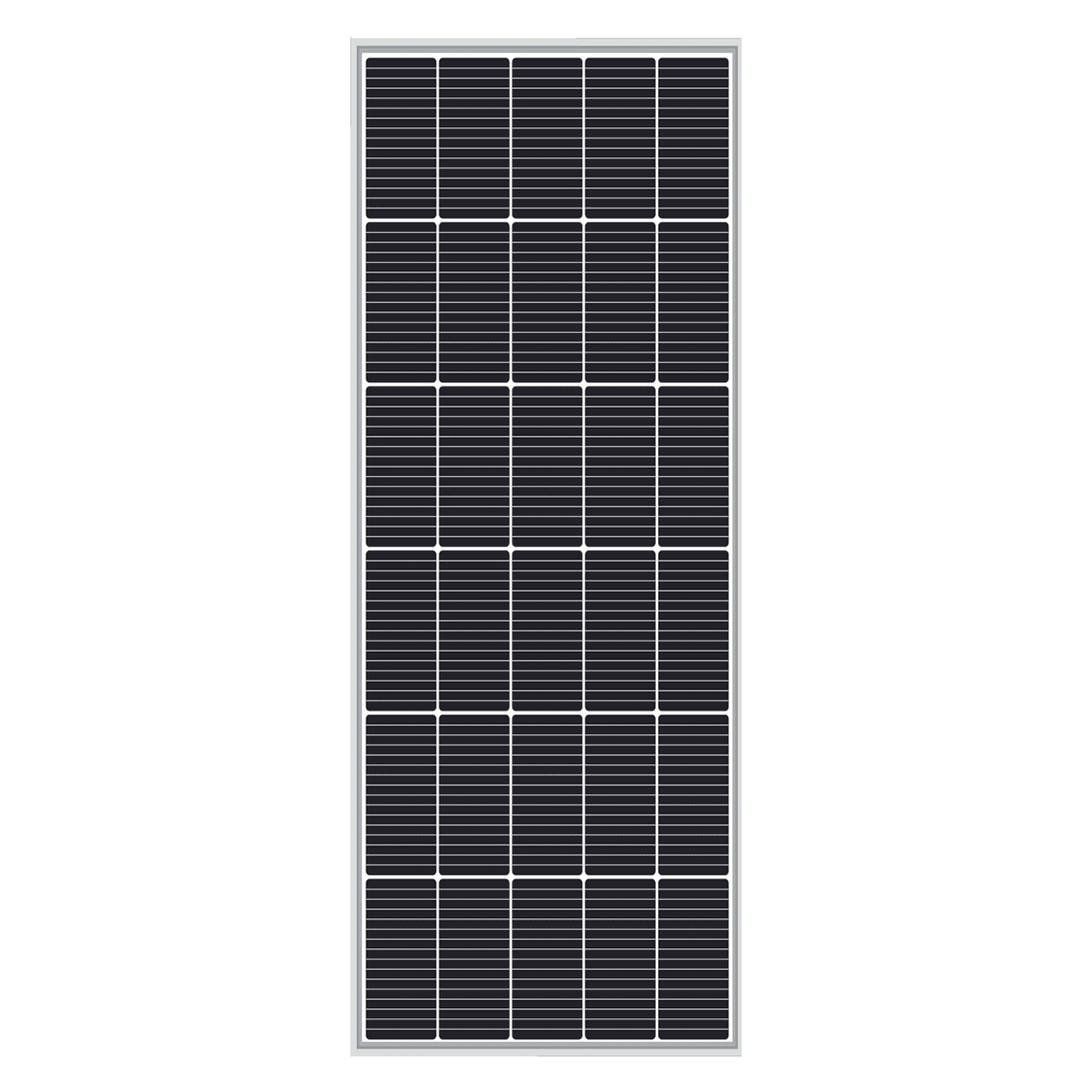

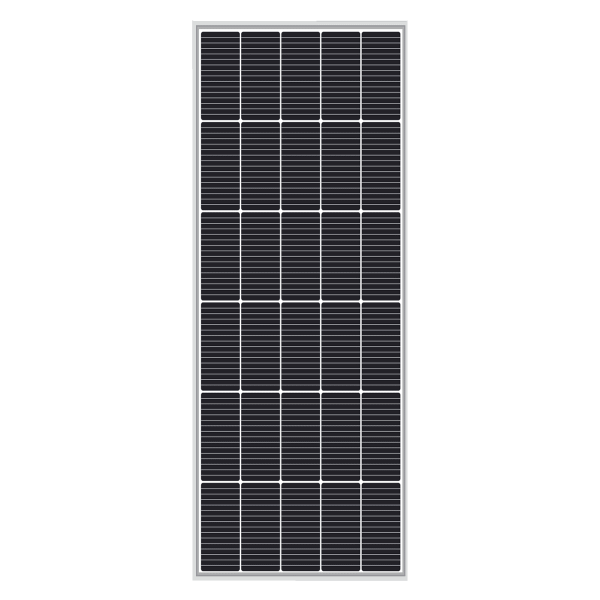

Fujiyama 100W 12V TOPCon Solar Panel

The Fujiyama 100W 12V TOPCon solar panel is designed for reliable performance in small-scale solar applications. Built with advanced TOPCon cell technology, it delivers higher efficiency and better power output even in limited space conditions.
With a durable aluminum frame and high-quality tempered glass, this panel is suited for long-term outdoor use. It is ideal for off-grid systems, solar lighting, battery charging, and backup power applications in both residential and commercial setups.

Add to Wishlist
Add to Wishlist
Category:
Trust Badge Image

Description

The Fujiyama 100W TOPCon solar panel combines modern cell technology with a robust design to ensure consistent energy generation. Equipped with 16BB TOPCon cells, the panel improves efficiency and reduces energy losses, making it suitable for compact solar installations.
Its weatherproof junction box (IP67 rated) ensures protection against dust and moisture, while the anodized aluminum frame provides structural strength. The panel is designed to perform reliably across varying environmental conditions, making it a dependable choice for long-term use.
With optimized electrical characteristics and stable output, this panel is ideal for charging 12V battery systems and powering small solar setups such as homes, shops, street lighting, and rural electrification projects.

Key Features

    • 100W 12V solar panel with advanced TOPCon technology
    • High efficiency with 16BB solar cells
    • Durable tempered glass for long-lasting performance
    • Strong anodized aluminum frame
    • Weatherproof IP67 junction box
    • Stable output for battery charging applications
    • Suitable for off-grid and small solar systems
    • Reliable performance in different weather conditions

Reviews

There are no reviews yet.

Be the first to review “Fujiyama 100W 12V TOPCon Solar Panel”

Your email address will not be published.

Specifications

Parameter Value
Rated Power (Pmax) 100W
Power Tolerance ±2%
Open Circuit Voltage (Voc) 19.60V
Short Circuit Current (Isc) 6.79A
Voltage at Max Power (Vmp) 15.68V
Current at Max Power (Imp) 6.38A
Maximum System Voltage 600V
Module Efficiency 17.12%
Number of Cells 30
Dimensions (L×W×T) 1134 × 515 × 35 mm
Weight 7.2 kg (Approx)
Frame Anodized Aluminum
Glass Tempered, Low Iron
Encapsulate EVA (PID Resistant)
Max Series Fuse 15A
Junction Box IP67, 2 Diode
Mounting Hole Pitch (Y) 257 mm

Application

    • Home lighting systems
    • Solar battery charging (12V systems)
    • Rural electrification
    • Small commercial setups
    • Backup power systems

Warranty

    • 1% degradation in first year
    • 0.4% annual degradation from year 2 to 27 years
