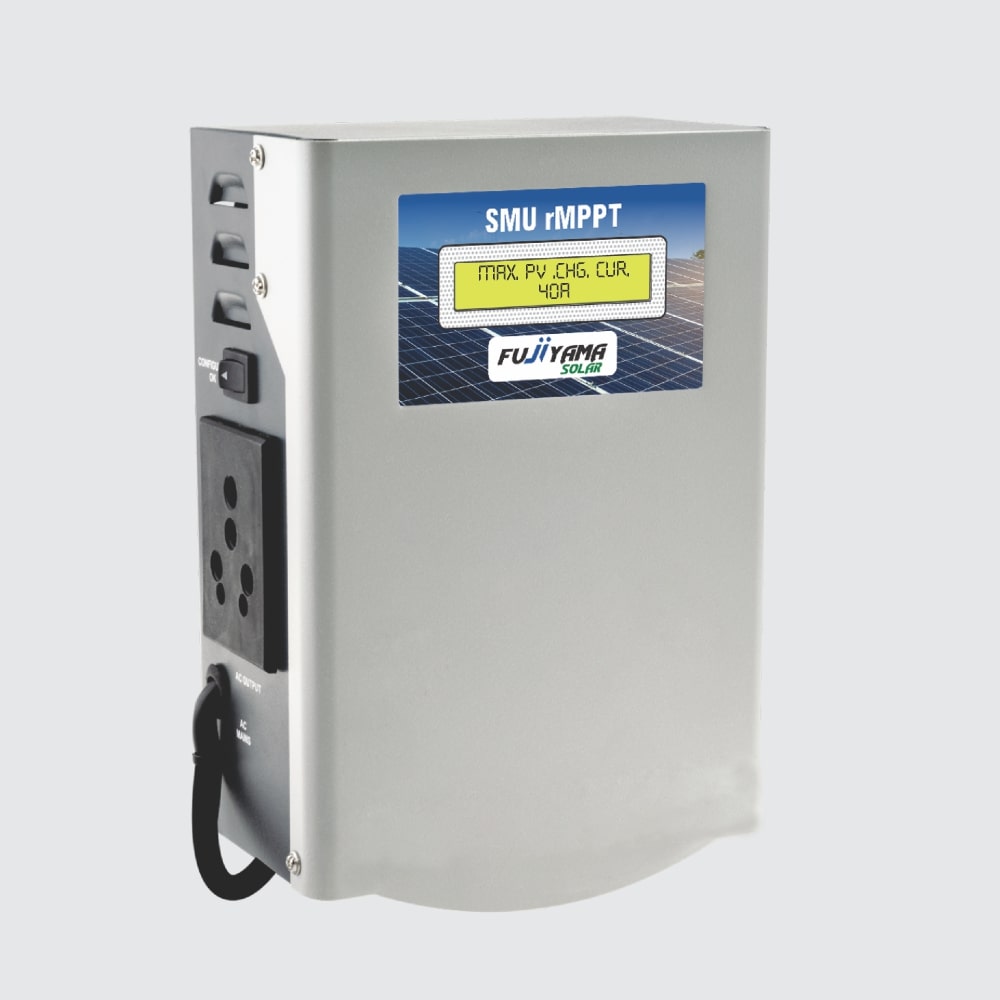

r-MPPT Solar Management Unit – SMU-24V-40A

Convert your Home Inverter into Solar Inverter

  • Inbuilt MPPT Technology Charge Controller.
  • High reliability with longer operational life.
  • Compact design with Wall Mounting.
  • 3 Stage Charging BLK, ABS, FLT.
  • Transient and Surge Protection.
  • Over Temperature Protection.
  • Automatic Voltage selection for 12V or 24V.
  • Inbuilt protection to avoid battery undercharge & over-charge.
  • High speed and high performance micro-controller.
  • Solar Prioritization.
  • Eco friendly.
Add to Wishlist
Add to Wishlist
Categories: ,
Trust Badge Image

Description

Convert your Home Inverter into Solar Inverter

  • Inbuilt MPPT Technology Charge Controller.
  • High reliability with longer operational life.
  • Compact design with Wall Mounting.
  • 3 Stage Charging BLK, ABS, FLT.
  • Transient and Surge Protection.
  • Over Temperature Protection.
  • Automatic Voltage selection for 12V or 24V.
  • Inbuilt protection to avoid battery undercharge & over-charge.
  • High speed and high performance micro-controller.
  • Solar Prioritization.
  • Eco friendly.

Reviews

There are no reviews yet.

Be the first to review “r-MPPT Solar Management Unit – SMU-24V-40A”

Your email address will not be published.

Specification

Technical Specification- SOL1224/40A rMPPT
General
Model SOL1224-40A rMPPT
Nominal System Voltage 12V DC 24V DC
Battery Capacity Max. 200AH
Battery Type Tubular/SMF
Battery Charging Regulation Method 3 Stage  (Bulk/Absorption/Float)
Solar Charger Type  MPPT
Solar Power  (Max.) 600W  1200W
Max. Solar Panel Recommended 1). 150W/165W X2 (Series)X2 (Parallel)
2). 315W/325W/330W/335WX2 ( Parallel)
390WX1		 1) 315W/325W/330W/335WX4 (Parallel)
390W/425WX3, 540WX2 (Parallel)
2) 315W/325W/330W/335WX2(Series)X 2 (Parallel)
Max. Solar input Voltage(Voc) 15V-49.5V 30V-99V
Idle Consumption <20mA
Efficiency >95%
Battery set points
Tubular Boost  Voltage  :-  14.5V ± 0.2V
Float voltage :-  14V ± 0.2V
Bulk Absorption :14.8V ± 0.2V		 Boost Voltage  :-  29.0V ± 0.2V
Float voltage :-  28V ± 0.2V
Bulk Absorption :29.6V ± 0.2V
SMF Boost/Float Voltage  :  13.8V ± 0.2V
Bulk Absorption         :  14.1V ± 0.2V		 Boost/Float Voltage  :  27.6V ± 0.2V
Bulk Absorption         :  28.2V ± 0.2V
Battery  Current Max. 40A
Grid
Mains  Low cut /Recovery 90V/100V ± 10V
Mains high cut  /Recovery 290V/280V ± 10V
Mains reconnect when Solar not present At any Batt. Voltage
Mains disconnect If Battery reaches boost level then after <5 min. Mains will be disconnected .
Mains Reconnect  Battery volt. : 11.8V Battery volt. : 23.6V
Display Parameters
Display Type LCD
Display Parameters  Batt. Voltage, Batt. Current, Batt. Type(TUB/SMF), Solar Voltage, Solar Current , Solar Saving- KWh ,  Mode Selection (Auto/Manual) , Mains Present ,  Absent
Protections
Protections Battery Reverse Polarity (Fuse blown)  , Batt. Reverse Current , SPV Over Current  , Solar High Voltage , SPV Reverse Polarity  , Over Temperature , Mains High Cut , Mains Low Cut
Operating Temperature 0°C to 50°C
Storage Temperature 0°C to 60°C
Ingress Protection IP-20
Fixing Wall Mounted
Weight (Kg) 2.6
Dimension (LXWXH) Inch 9.25 x 9 x 4.15
* Specifications are subject to change without prior notice due to constant improvement in design & technology.
